Tesla Coil Full-Bridge IGBT Module – DRSSTC Full Bridge Power Stage

Tesla Coil Full-Bridge IGBT Module (DRSSTC Power Stage)

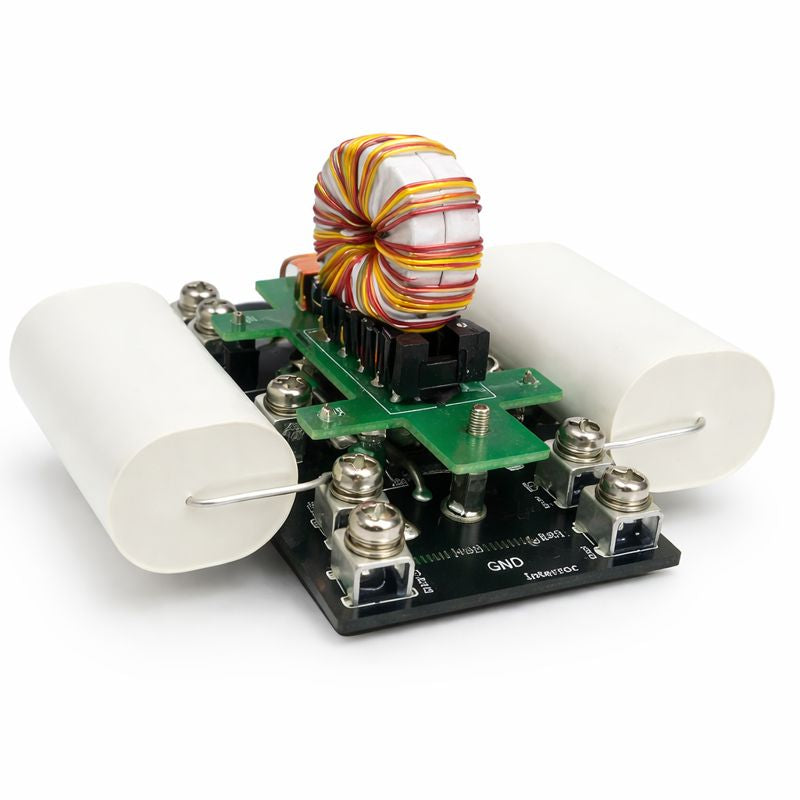

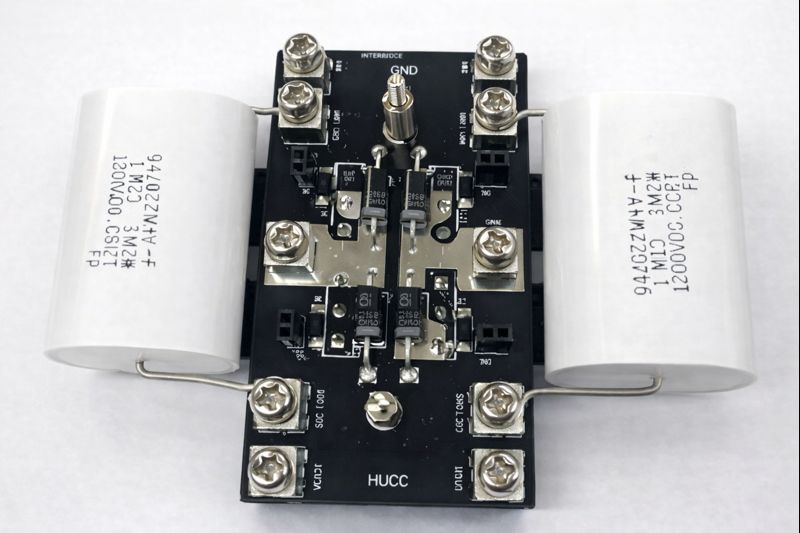

This full-bridge IGBT power module is designed for DRSSTC (Dual Resonant Solid State Tesla Coil) and other high-power resonant inverter applications. It provides a compact, robust, and proven layout for driving a full-bridge with external gate drive and protection circuitry.

Key Features

• Full-bridge topology for DRSSTC and resonant inverters

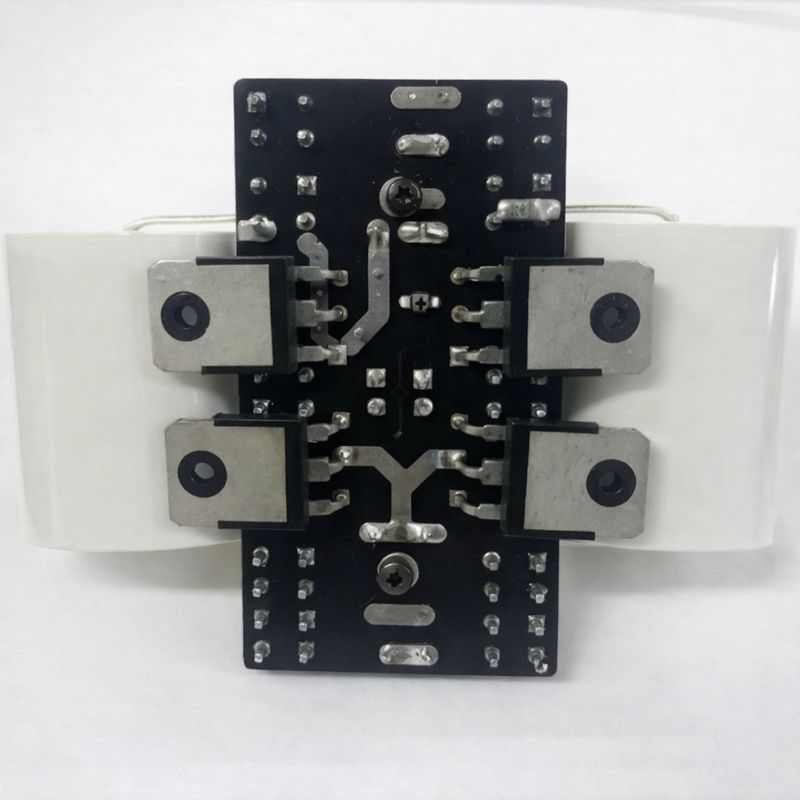

• Heavy copper PCB with low-inductance layout
• Designed for high peak current operation

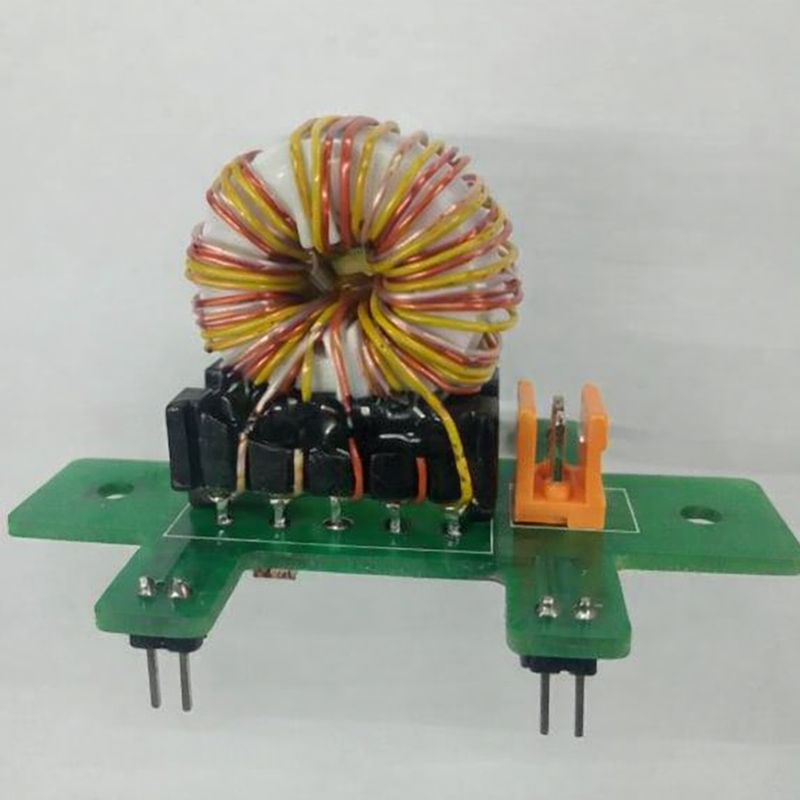

• Supports external GDT (Gate Drive Transformer)
• Suitable for interrupter-based operation
• Mounting provision for large heatsinks

Supported Applications

• DRSSTC Tesla coils
• Resonant inverters
• Induction heating experiments
• High-power pulsed power systems
• Educational and research projects

Variants Available

• Full Set with GDT – Complete power stage with gate drive transformer
• Kit with GDT – Module with GDT (assembly may be required)
• GDT Only – Gate Drive Transformer for compatible drivers

Important Notes

• This is a power stage only; external driver, interrupter, and protection circuits are required
• Proper gate drive, dead-time control, and over-current protection are essential
• Designed for experienced users familiar with high-voltage and high-current systems
• High voltage and RF energy can be dangerous — use appropriate safety precautions

Package Contents

• Items included depend on the selected variant
• Please select the correct option before checkout

Vendor: Lanotop
Condition: Brand new
Application level: Advanced / Experimental
