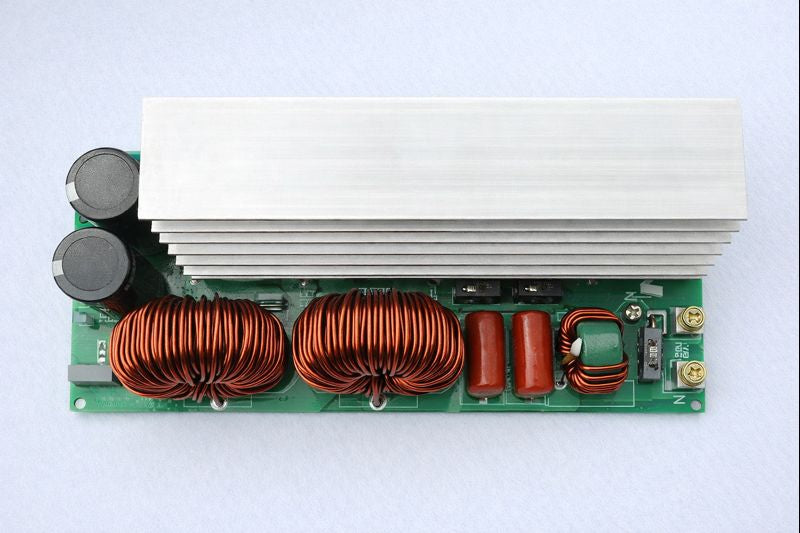

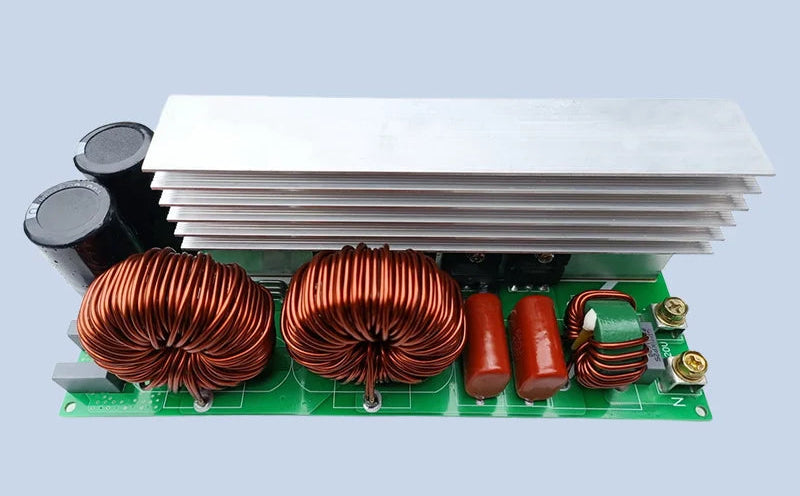

Pure Sine Wave Inverter Rear Stage Board 4000W–5000W | DC 320–450V to AC 110–220V

Pure Sine Wave Inverter Output Stage Board (4000W–5000W)

This high-power inverter rear stage board converts high-voltage DC (320–450 V) into a stable pure-sine AC output (110 V / 220 V). Designed for integration with front-end boost converters or solar DC buses, it delivers reliable AC power for home, industrial, and experimental systems.

⚙️ Features

• Output: Pure sine wave AC 110 V / 220 V selectable
• Input voltage: DC 320–450 V
• Output power options: 4000 W / 5000 W
• Frequency: 50 Hz ± 0.5 Hz
• High-efficiency IGBT H-bridge output stage
• Large aluminum heatsink with integrated fan mount
• Designed for high-voltage inverter or solar systems
• Compatible with SG3525, TL494, or custom PWM driver control

📦 Specifications

• Input DC voltage: 320–450 V DC
• Output AC voltage: 110 V / 220 V AC
• Continuous power: 4000 W / 5000 W (model-dependent)
• Efficiency: ≥ 90 %
• Output waveform: Pure sine wave
• Frequency stability: ± 0.5 Hz
• Protection: Over-current / short-circuit / over-temperature (driver-dependent)
• Dimensions: ~210 mm × 120 mm (board only)

🧰 Applications

• Rear-stage of full inverter systems
• Solar and battery-powered AC systems
• High-voltage DC to AC conversion
• Research and energy development projects

🧩 Notes

• Requires a matching front-end boost stage (DC 12 / 24 / 48 V → 320–450 V).
• Ensure proper isolation and cooling during operation.
• Ideal for use with Lanotop or similar inverter driver modules.
