EC49 High-Frequency Transformer Module (12V / 24V) – Push-Pull Inverter Power Core

EC49 High-Frequency Transformer Module (12V / 24V) – Push-Pull Inverter Power Core

$116.81 NZD
$0.00 NZD $116.81 NZD
Sale Sold out
Shipping calculated at checkout.
Color

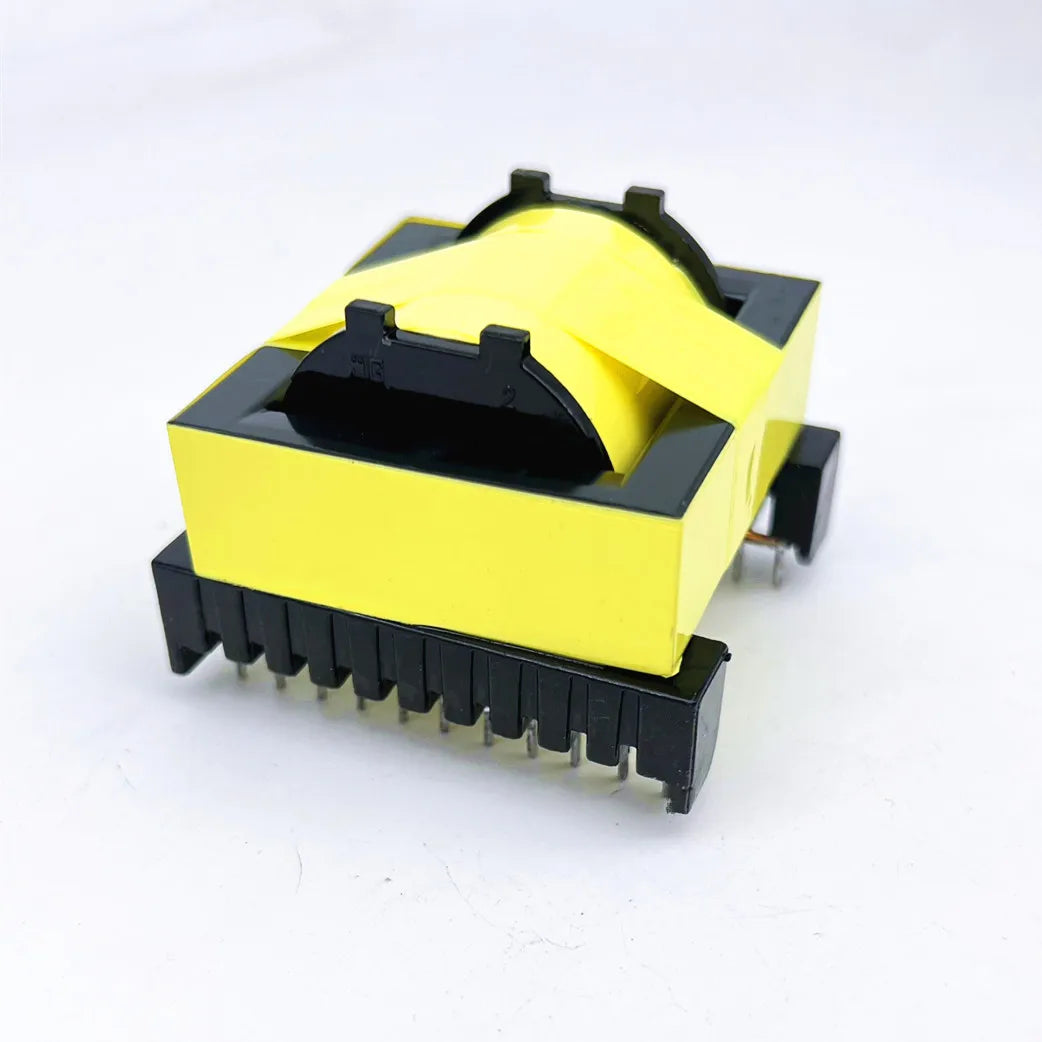

EC49/EC4954 High-Frequency Transformer – 12V/24V to 220V–420V Inverter Booster Core

This EC49/EC4954 horizontal high-frequency transformer is designed for DIY inverter, SMPS, and high-frequency power conversion projects. It is suitable for push-pull inverter circuit structures using driver ICs such as TL494 or SG3525 together with suitable MOSFETs or switching transistors.

Available in 12V and 24V input variants, this transformer provides multiple high-voltage secondary winding options including 220V, 330V, 380V, and 420V, depending on the circuit design and selected output tap.

Key Features

  • ⚡ Suitable for push-pull inverter booster circuits
  • 🔋 Available in 12V and 24V input variants
  • 🔌 Multiple output winding options: 220V, 330V, 380V, and 420V
  • 🧲 EC49/EC4954 ferrite magnetic core
  • 🧵 Copper strip primary winding and pure copper enameled secondary wire
  • 🛠 Ideal for DIY inverter, SMPS, and power electronics projects
  • 📦 Horizontal 11+11 pin structure for PCB mounting

Specifications

Product Type Horizontal High-Frequency Ferrite Transformer
Core Model EC49 / EC4954
Input Voltage Variants 12V or 24V, depending on selected variant
Rated Power Up to 1000W, depending on circuit design, cooling, switching devices, and operating conditions
Operating Frequency 15–40kHz

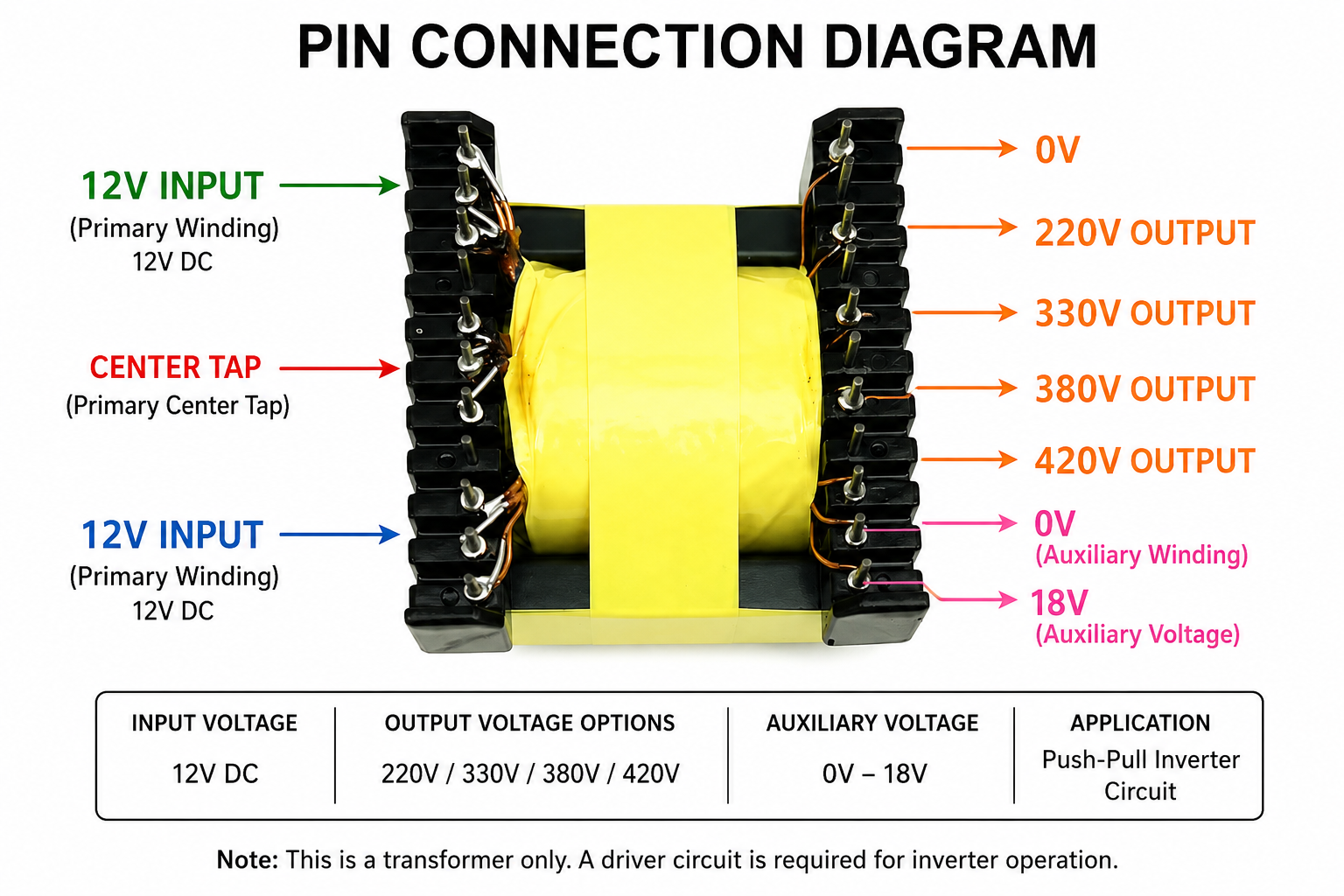

Primary Winding Copper strip winding. 12V version: 3T + 3T. 24V version: please refer to selected variant specification.
Primary Wire 0.3 × 30mm copper strip
Secondary Winding 0.70mm pure copper enameled wire
Output Voltage Windings 220V / 330V / 380V / 420V
Secondary Turns 220V: 55T, 330V: 83T, 380V: 95T, 420V: 105T
Auxiliary Output Approx. 18V, 0–5T auxiliary winding
Core Size 49 × 54 × 17mm

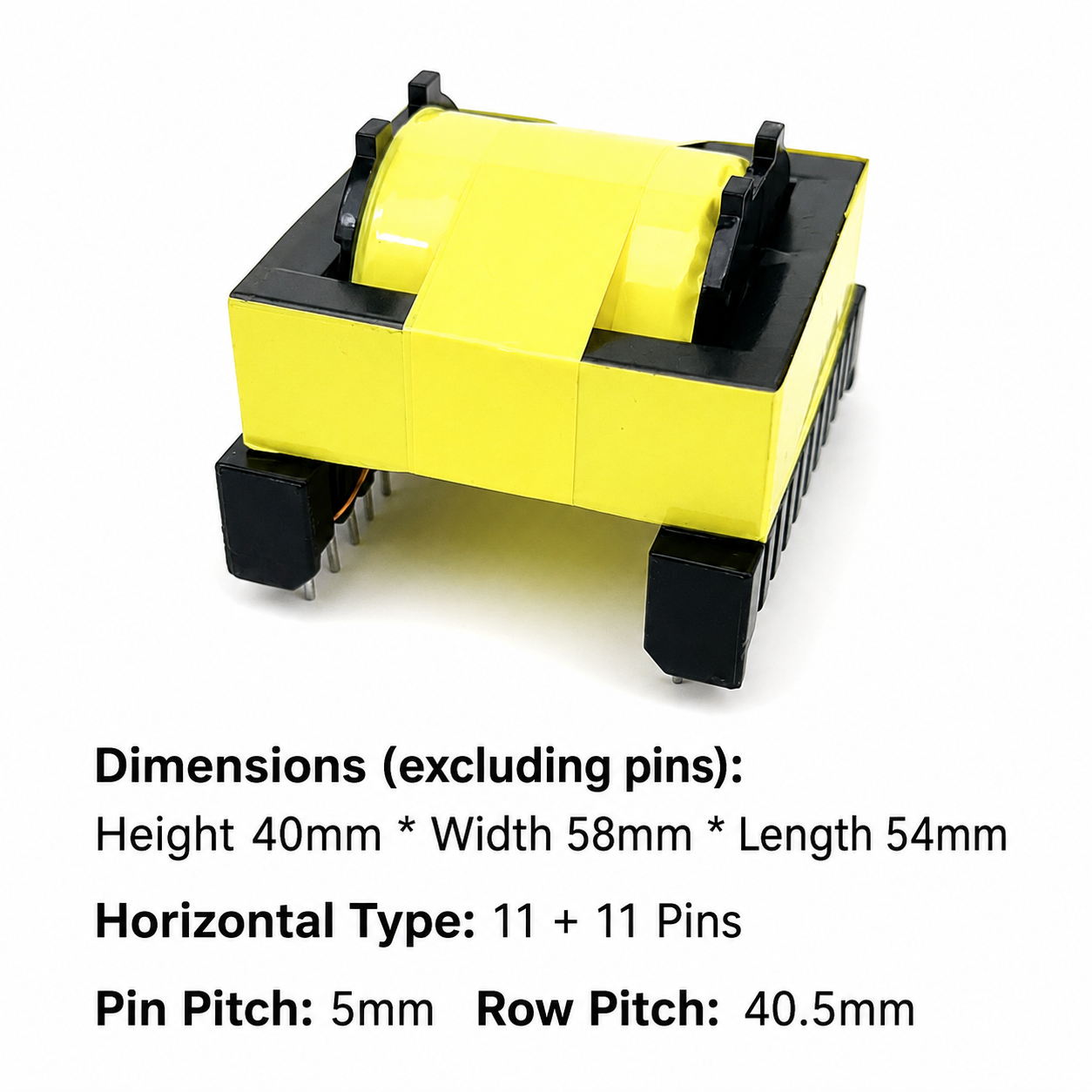

Body Size Approx. 54 × 58 × 40mm, excluding pins
Pin Configuration 11 + 11 pins
Pin Pitch 5mm
Row Spacing Approx. 40–41mm
Weight Approx. 230g

Important Notes

  • This product is a transformer only. It cannot directly step up 12V or 24V DC by itself. A suitable inverter driver circuit is required.
  • Common driver ICs for this type of push-pull inverter design include TL494 and SG3525, used together with suitable MOSFETs, gate-drive components, and protection circuitry.
  • The listed output voltages are based on winding turns ratio and typical push-pull operating conditions. Actual output voltage may vary depending on input voltage, duty cycle, switching frequency, MOSFET losses, wiring resistance, load conditions, and circuit design.
  • Rectified no-load voltage may be higher than the nominal voltage due to switching spikes and leakage inductance. Proper snubber circuits, filtering, load testing, and safe measurement practices are recommended.
  • High-voltage output can be dangerous. This product should only be used by users familiar with inverter circuits, high-frequency transformers, and electrical safety.

Package Includes

  • 1 × EC49/EC4954 Horizontal High-Frequency Transformer
