DC 12V 500W / 1000W Inverter Boost Transformer Power Converter Module Board

DC 12V 500W / 1000W Inverter Boost Transformer Power Converter Board

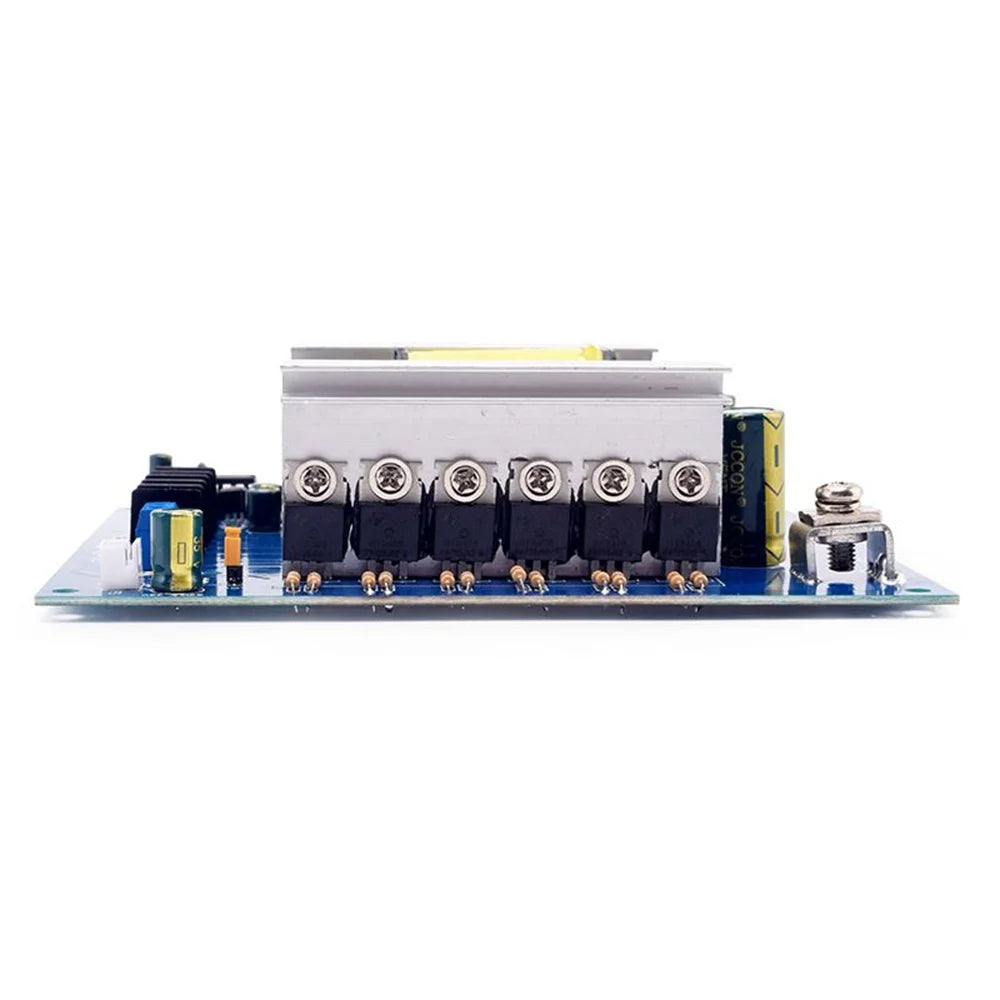

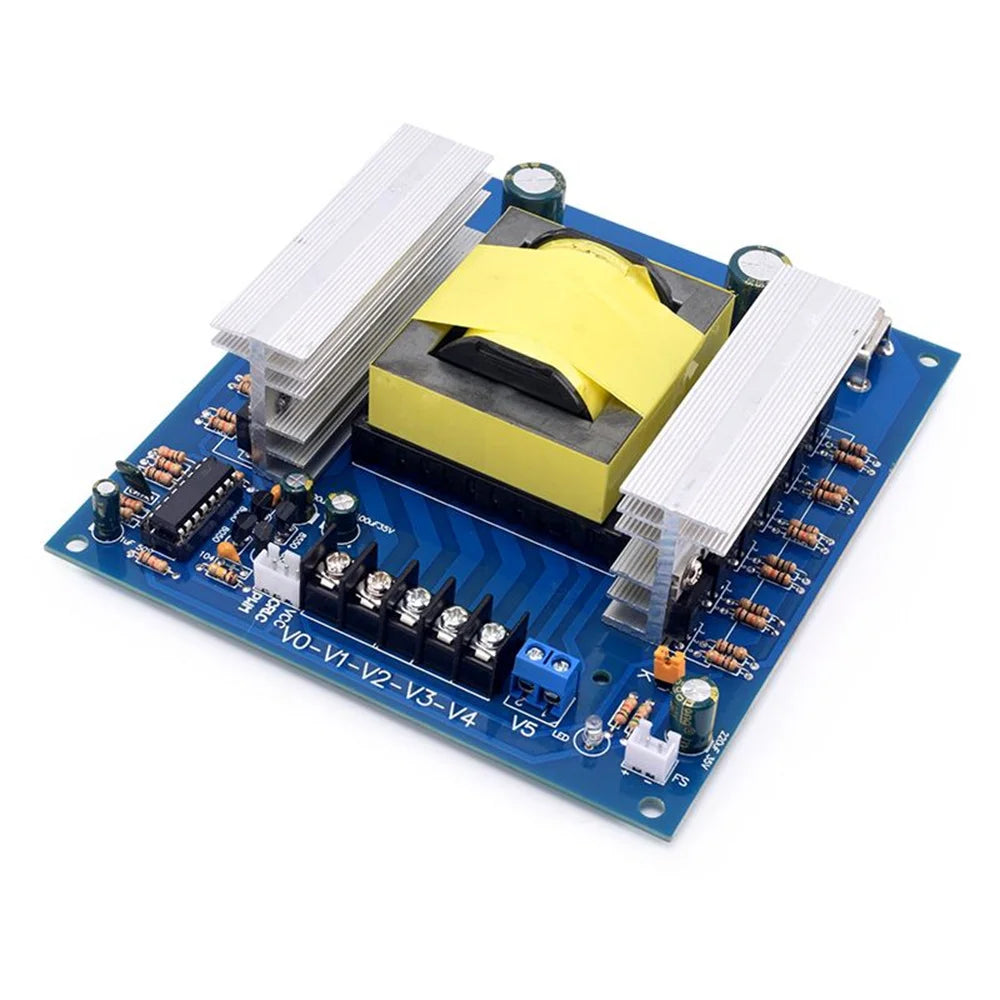

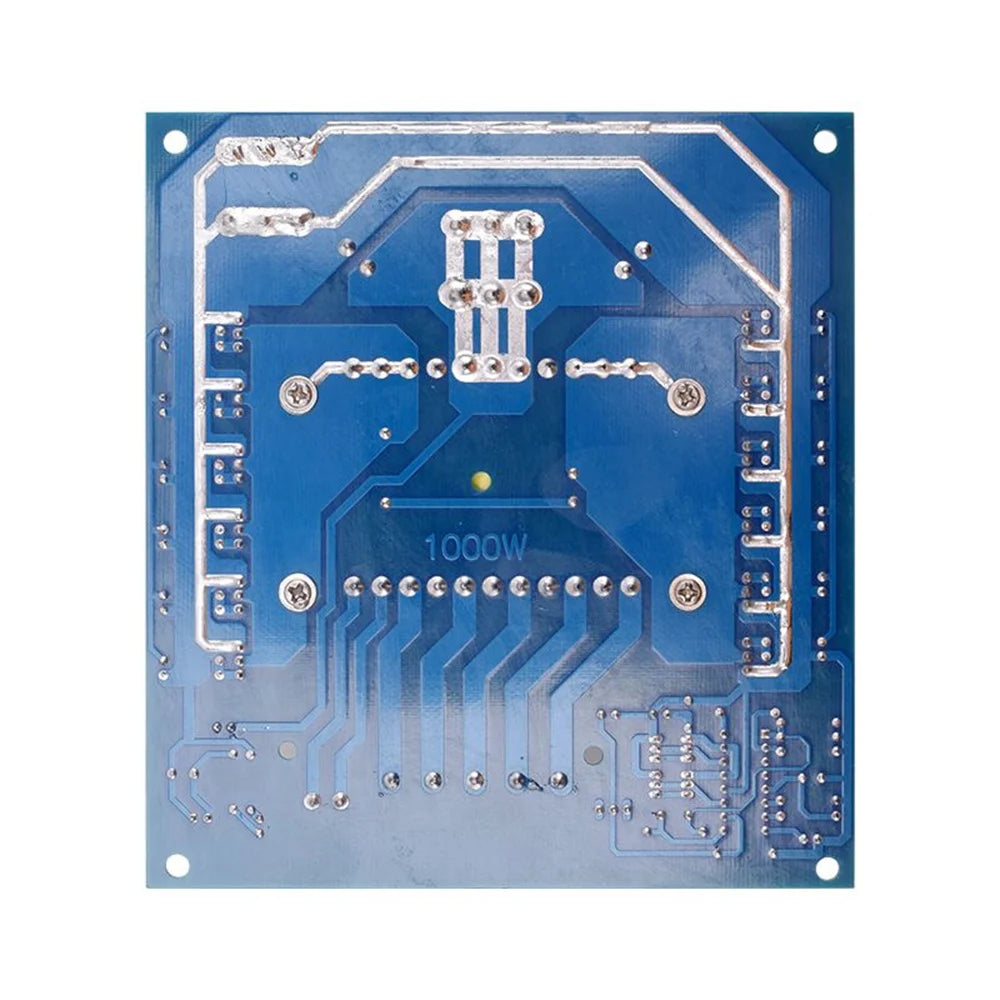

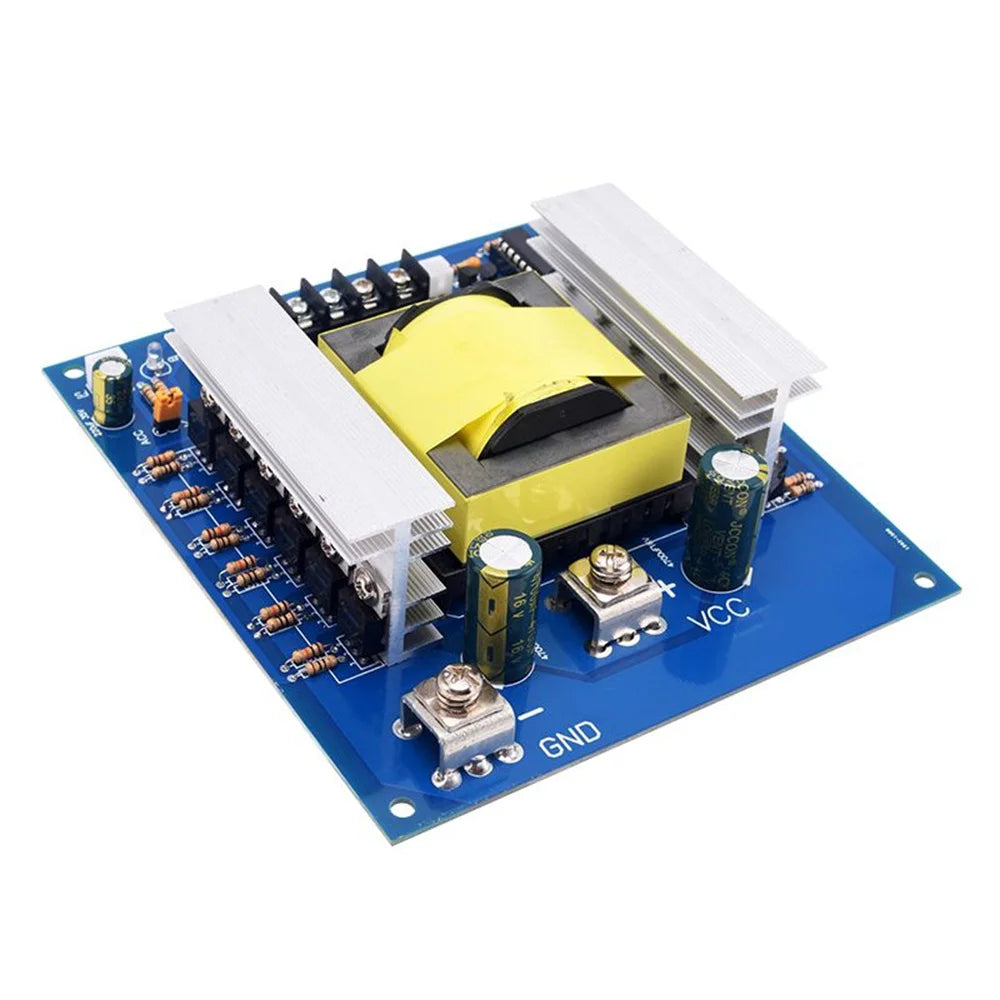

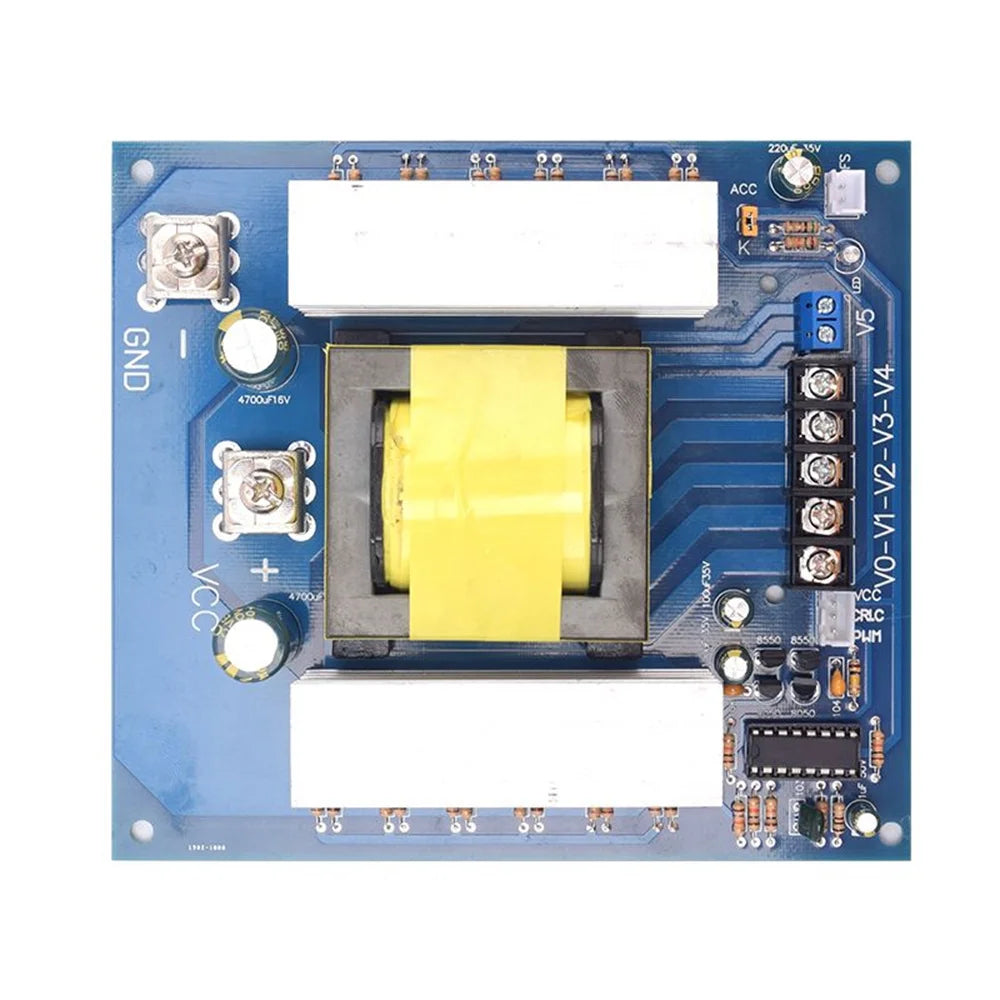

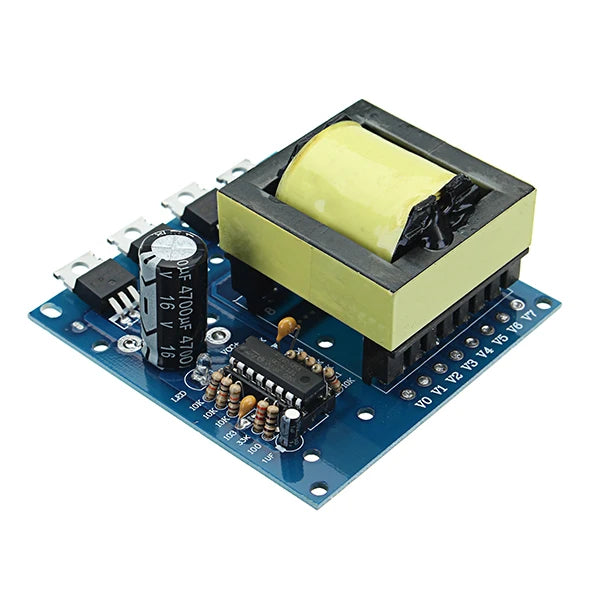

This inverter boost board efficiently converts 12V DC input into high-voltage AC output, ideal for educational, experimental, and DIY inverter projects. Designed with a high-frequency square-wave output, it’s well-suited for powering lamps, electronic loads, or as a stage module in a custom inverter system.

Key Features

• High Energy Efficiency: Long life, stable operation, and low power loss.
• Versatile Use: Supports a wide range of AC output voltages (160–380V AC) and power ratings (up to 500W or 1000W depending the model).
• DIY & Experimental Friendly: Ideal for R&D, electronic labs, and inverter construction projects.
• Robust Build: Military-grade PCB, durable transformer, and compact 8×7.5 cm design.
• Applications: Educational setups, energy-saving demonstrations, off-grid lighting, and electronics development.

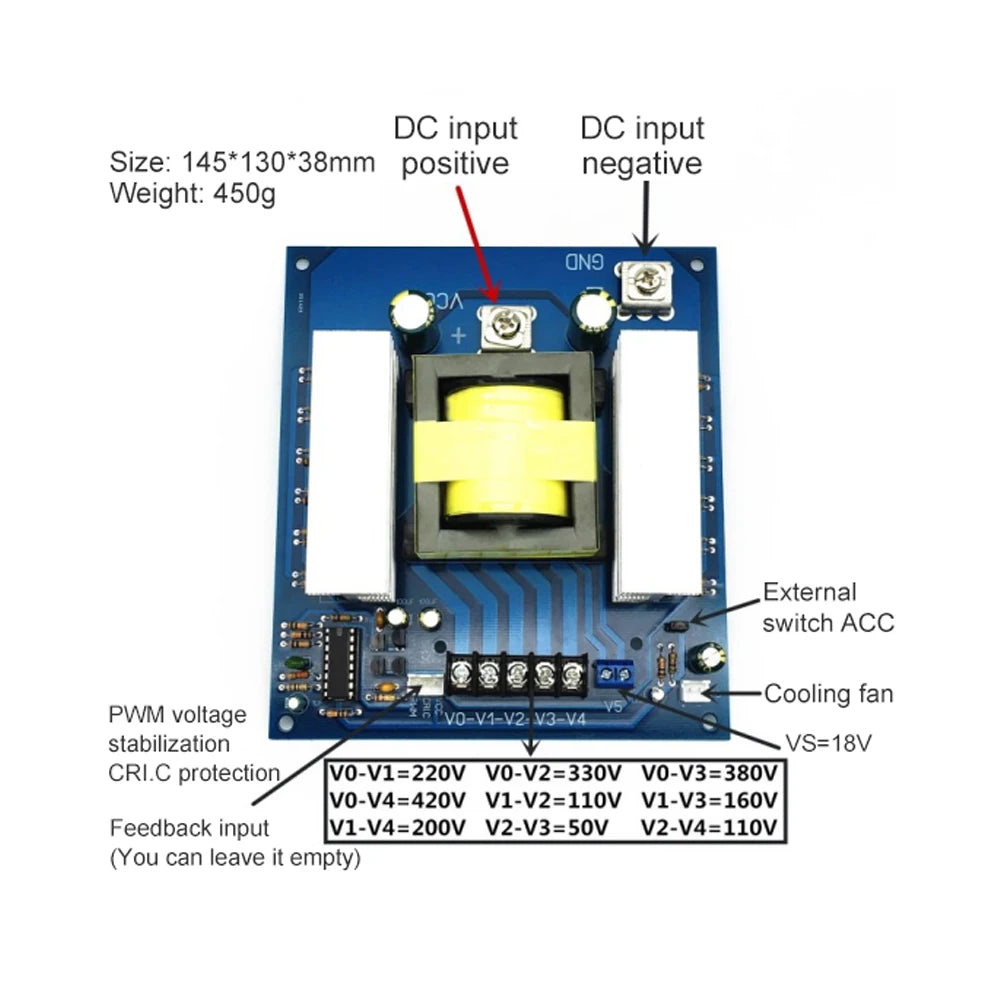

Technical Specifications

• Input Voltage: DC 12V
• Output Voltage: AC 160V–220V–380V and AC 18V
• Power Rating: 500W nominal (up to 1000W peak)
• Output Waveform: High-frequency square wave (~20kHz)
• Quiescent Load Current: ≈ 0.35A
• Protection: None (external protection recommended)
• PCB Dimensions: 8 × 7.5 cm

Package Includes

• 1 × DC 12V Inverter Boost Transformer Board

Note: For educational and R&D use. High voltage present at output — ensure proper insulation and safety precautions.
