**220 V Solid-State Resonant Coil (SSTC) — Music Arc Edition**

High-performance dual-totem solid-state resonant coil system capable of generating audio-modulated plasma arcs. Designed for educational, experimental, and demonstration use, featuring optical isolation, IGBT protection, and built-in sound modulation.

**⚙️ Features**
• Dual-totem phase-shift driver with low-latency, high-efficiency IGBT control
• Full-bridge power stage for maximum output energy
• Fiber-optic signal transmission — long-distance, anti-interference control
• Drive-arc extinguishing isolation design for safety and reliability
• 220 V direct-supply power input
• Audio modulation via 3.5 mm stereo interface

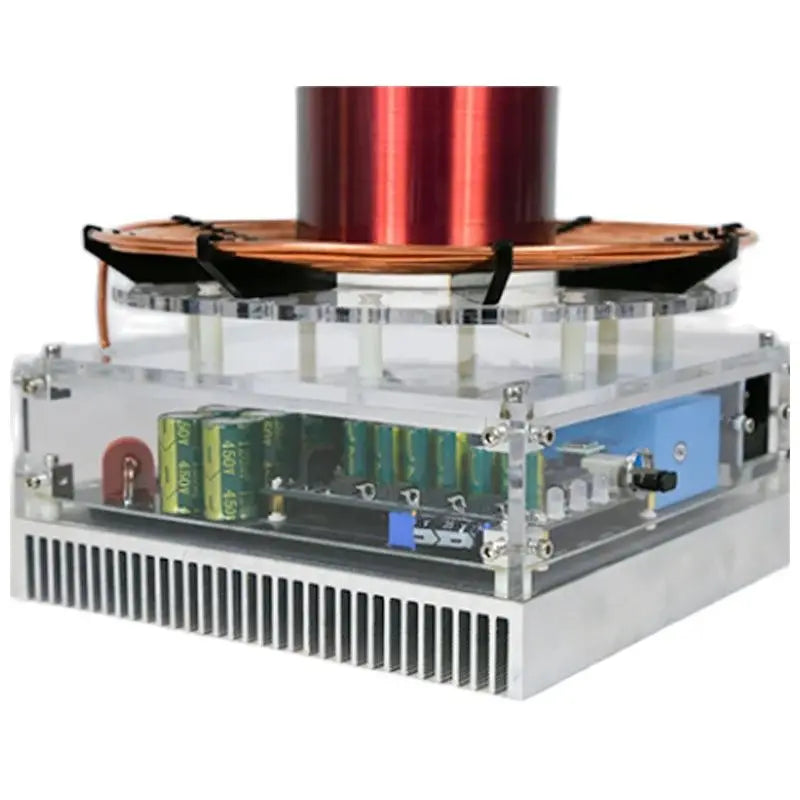

• Compact design — sturdy acrylic structure, easy to transport

**📦 Specifications**
• Input voltage: 220 V AC
• Operating frequency: 200 kHz ± 10 %
• Output type: high-frequency resonant waveform
• Typical discharge length: 60–70 mm (in air)
• Typical discharge voltage: up to 500 kV (peak)
• Current draw: 2 – 5 A AC
• Control interface: 3.5 mm audio jack

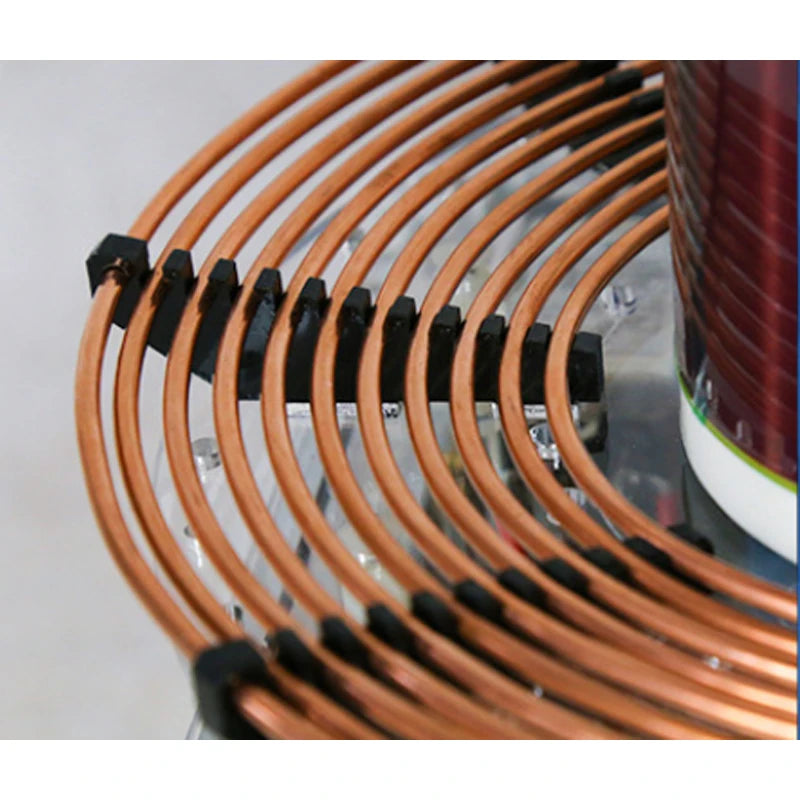

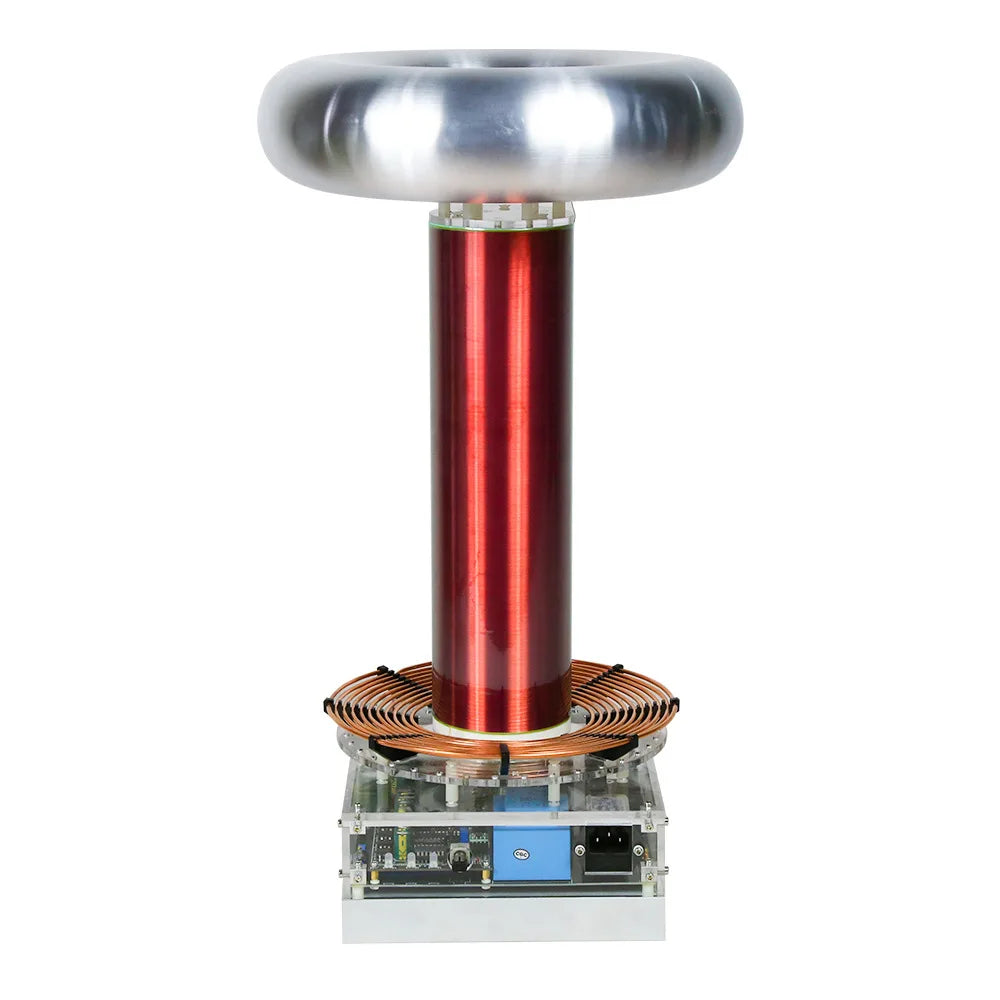

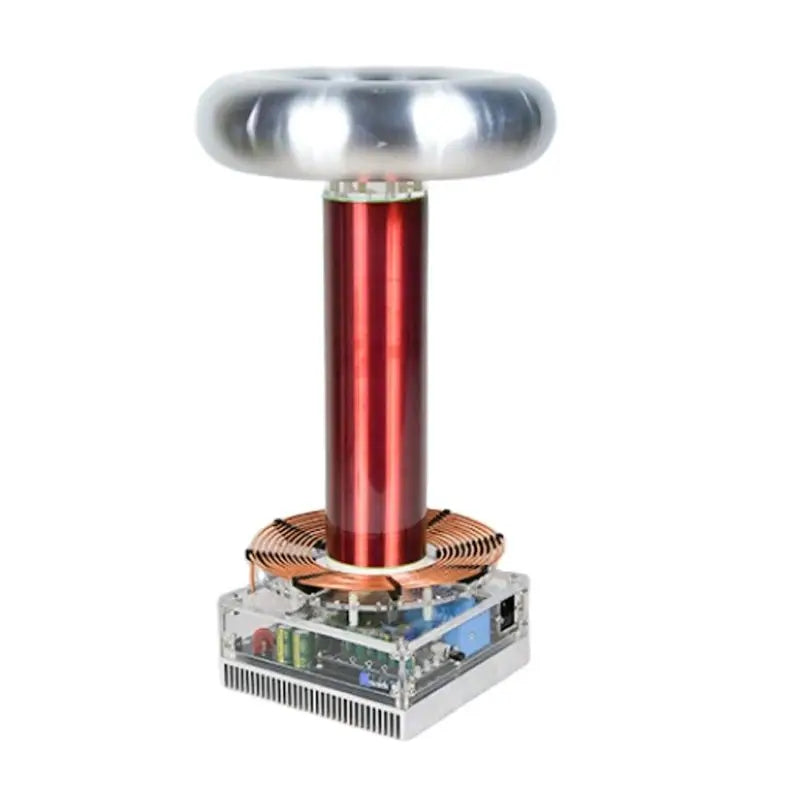

• Construction: Acrylic base, copper secondary coil, aluminum top-load

**🧰 Applications**
• Resonant-coil research and education
• Demonstration of high-frequency power transfer
• Audio-modulated plasma and light shows
• Laboratory and exhibition experiments

**🧩 Notes**
• Use only in a controlled lab or demonstration environment.
• Ensure proper grounding and isolation before operation.
• Keep conductive and electronic devices at a safe distance.
