22 Hz–20 kHz PWM to 0–5 V / 0–10 V Voltage Frequency Converter Module

**Voltage–Frequency Converter Module (22 Hz – 20 kHz)**

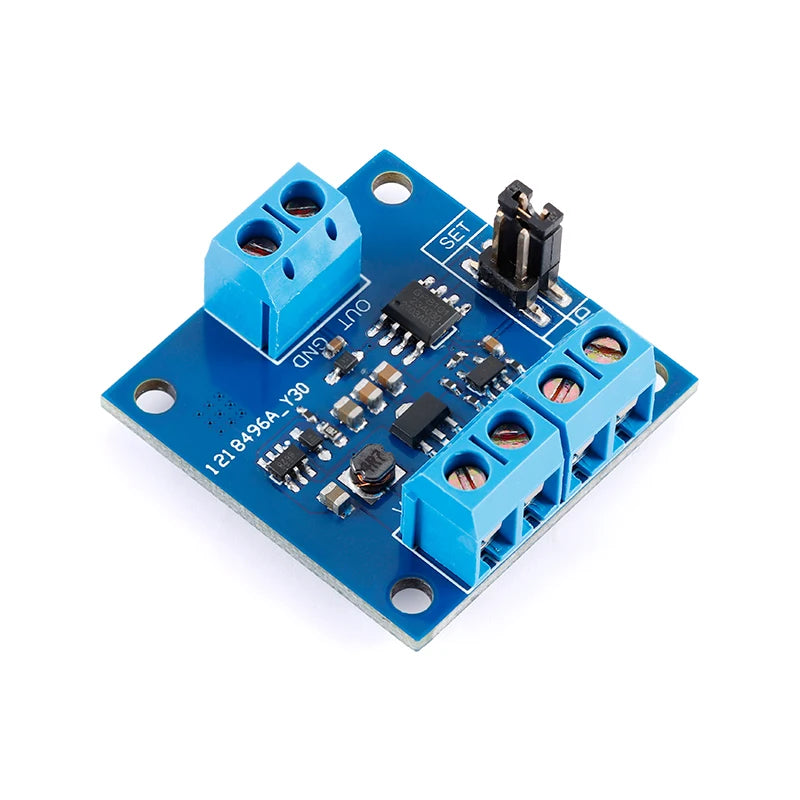

This compact board converts PWM or frequency input signals into a proportional analog voltage output (0–5 V or 0–10 V). Ideal for microcontroller, PLC, and industrial automation interfaces where frequency-to-voltage translation is required.

**⚙️ Features**
• Converts 22 Hz – 20 kHz input to 0–5 V or 0–10 V analog output
• Accepts 3.3 V – 24 V logic-level PWM signals
• Supply voltage: 3.3 V – 12 V DC
• Output error: ± 1.2 % (22 Hz – 20 kHz)

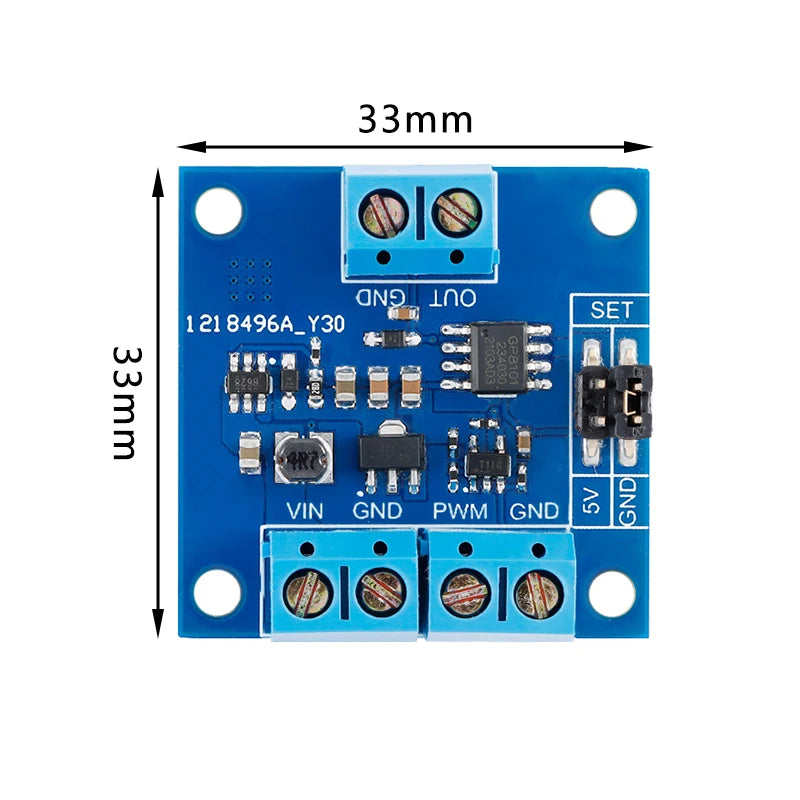

• Compact 33 × 33 mm PCB with M3 mounting holes
• High stability and fast response for signal conversion applications

**🔌 Pin Definition**
| Pin | Description |
|:--:|:--|
| VIN | Power input (3.3 V – 12 V) |
| GND | Power ground |
| PWM IN | PWM or frequency signal input |
| OUT | Analog voltage output (0–5 V / 0–10 V) |

**📦 Specifications**
• Input Signal Level: 3.3 V – 24 V logic
• Input Frequency: 22 Hz – 20 kHz
• Output Level: 0 – 5 V / 0 – 10 V
• Working Current: 9.5 – 21.5 mA (no load)
• Isolation: No
• Mounting: M3 screws

**🧰 Applications**
• MCU / Arduino PWM to analog conversion
• PLC and sensor signal interfacing
• Motor speed and dimmer control
• Frequency measurement feedback loops
