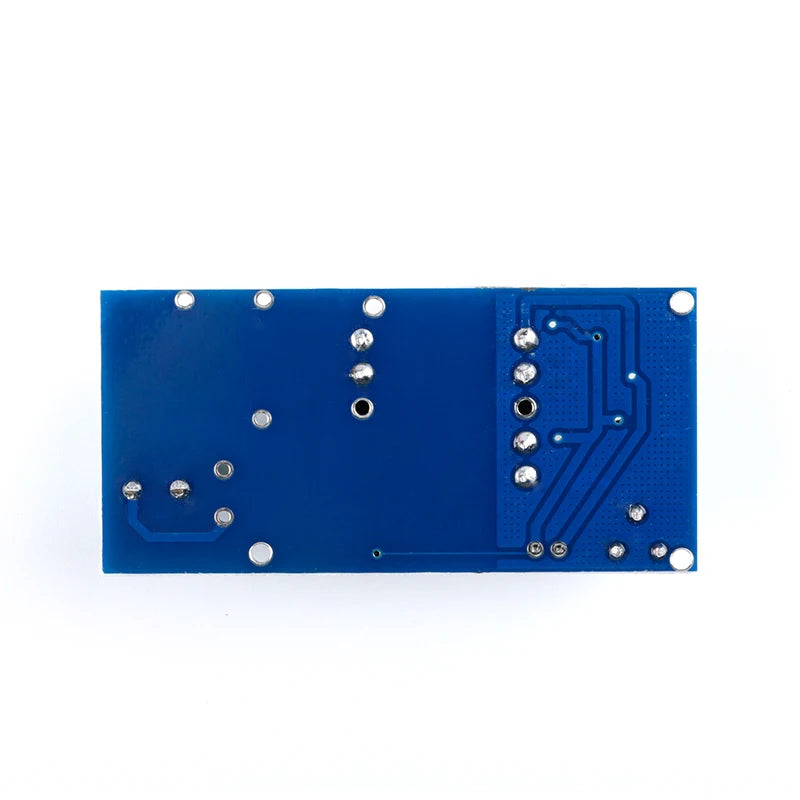

1200V High Voltage Power Supply Module Adjustable PSU DC-DC Step Up Boost Converter Board 3-5V to 280V–1200V

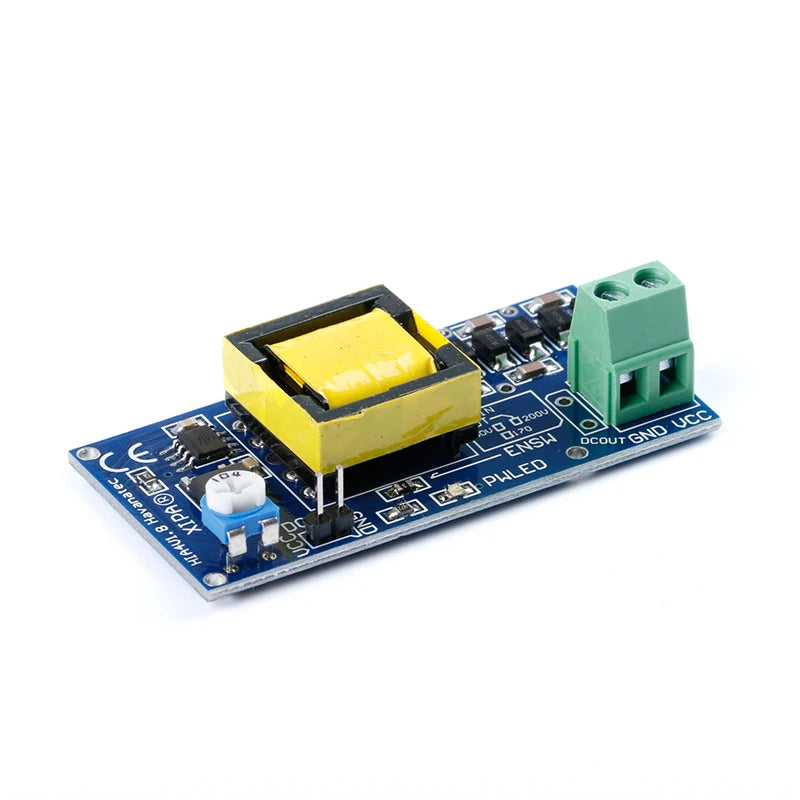

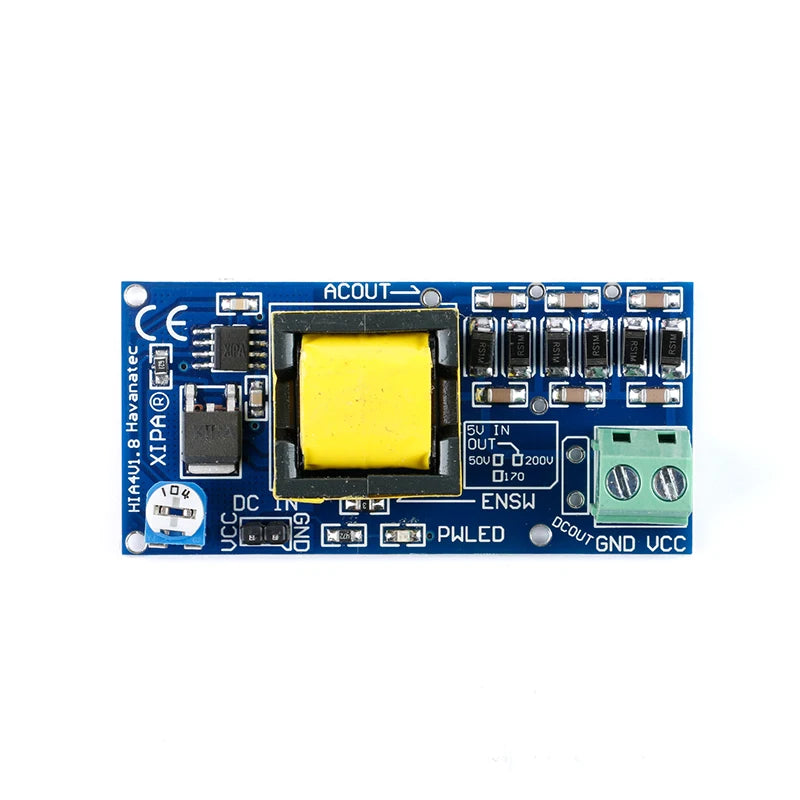

1200V Adjustable High Voltage DC-DC Boost Converter Module

This compact DC-DC boost converter module is designed to step up low DC voltages (3–5V input) to adjustable high-voltage outputs up to 1200V DC. Ideal for high-voltage experiments, plasma projects, ion generators, and electronic R&D applications.

Key Features

• Wide Output Range: Converts 3–5V DC input to 280–1200V DC output (adjustable).
• High Conversion Efficiency: Optimized transformer design for efficient voltage amplification.
• Compact Design: Lightweight PCB layout for integration into prototypes and portable systems.
• Tested Reliability: Suitable for HV experimentation, ignition circuits, and science demonstrations.
• Protection Note: Ensure adequate insulation and avoid direct contact with HV terminals.

Technical Specifications

• Input Voltage: 3–5V DC
• Output Voltage: 280–1200V DC (adjustable)
• Output Current: up to 35mA (depending on load)
• Module Type: DC-DC Boost Converter
• PCB Dimensions: approx. 65 × 25 × 22 mm

Applications

• High-voltage experimental circuits
• Plasma and ionization demonstrations
• Electrostatic generators and spark experiments
• Educational physics and electronics labs

Note: This is a high-voltage experimental module. Use only with proper insulation and safety precautions. For educational and R&D use.
